PRODUCT OVERVIEW
Series information

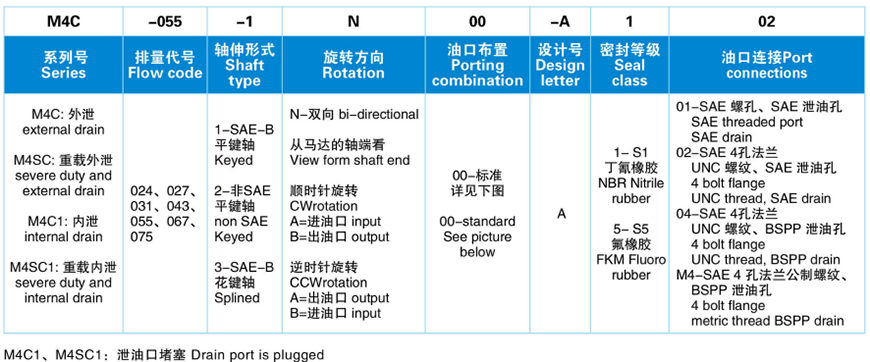

M4C/M4SC series vane motor.
TECHNICAL SELECTION
Specifications & configuration
Start with the driven load and required output speed. Pump sizing results do not establish motor performance.
| Parameter | What it tells you |
|---|---|
| Torque & speed | Check starting and running requirements against the motor data. |
| Flow & pressure | Review the available supply and the motor’s operating limits together. |
| Installation | Confirm shaft, mounting, port layout and any drain requirements. |
| Fluid & temperature | Use the fluid and temperature limits for the exact motor. |
ENGINEERING DOCUMENTATION
Technical documents
Includes M4C/M4SC, M4D/M4SD, M4E/M4SE and M5BF. Read typical performance with its stated speed, pressure differential and viscosity.
PDF and printed page numbers may differ.
Confirm the applicable revision, dimensions and operating limits for your complete model.
Request a drawing or current revision ›PROCUREMENT SUPPORT
Prepare your inquiry
- Load torque, speed range and duty cycle
- Supply flow, pressure and return-line conditions
- Installation drawing and hydraulic schematic
- Fluid designation and operating temperature
Include quantity, destination, requested delivery date and required documents. For a replacement, add nameplate and installation photos.
Inquire about this series ›
