PRODUCT OVERVIEW
Series information
M4D/M4SD series vane motor.
TECHNICAL SELECTION
Specifications & configuration
Start with the driven load and required output speed. Pump sizing results do not establish motor performance.
| Parameter | What it tells you |
|---|---|
| Torque & speed | Check starting and running requirements against the motor data. |
| Flow & pressure | Review the available supply and the motor’s operating limits together. |
| Installation | Confirm shaft, mounting, port layout and any drain requirements. |
| Fluid & temperature | Use the fluid and temperature limits for the exact motor. |
READ THE ORIGINAL CATALOG
Model code and installation
Distinguish the drain arrangement and duty designation before comparing typical motor performance.
Read the complete model code

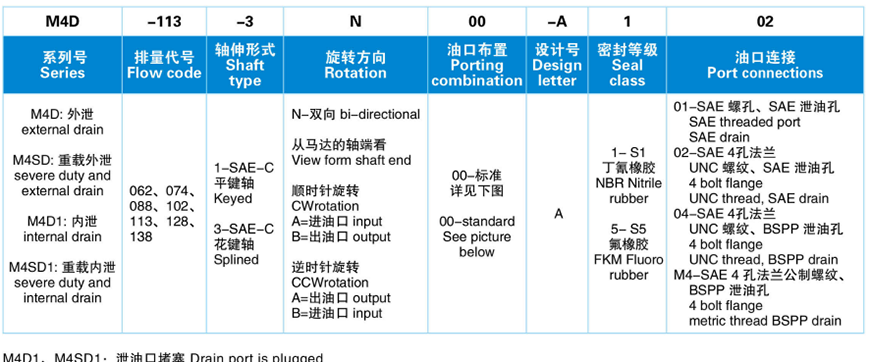

M4D · 113 · 3 · N · 00 · A · 1 · 02The separators show the fields in the source table. Confirm the final ordering code with Renowell.
- Series and drain
- The catalog distinguishes M4D external drain, M4SD severe duty external drain and internal-drain suffix variants.
- Displacement code
- Use the volumetric displacement column; the three-digit code is not the actual displacement.
- Shaft
- Keep the keyed or splined shaft designation.
- Rotation and porting
- N is bidirectional in this example. Port function depends on direction, viewed from the shaft end.
- Design, seal and connections
- Record the design letter, seal class and complete port-connection option.
Include every suffix when requesting a quote.
Compare interfaces before ordering
- Drain
- Confirm the exact internal or external drain variant and circuit arrangement.
- Mounting and shaft
- Use the M4D/M4SD drawing, including shaft projection and spline or key dimensions.
- Ports
- Keep inlet/outlet direction and the drain connection clear.
- Typical performance
- Page 6 states 2,000 rpm, 175 bar differential pressure and 24 cSt for the typical performance table; these are not universal operating limits.
Use stated dimensions, not measurements taken from an image on screen. Request the current drawing or CAD file for your exact configuration.
Request a configuration drawing ›Read the rating together with its conditions
For operating limits, use the Renowell catalog for your model.
ENGINEERING DOCUMENTATION
Technical documents
Includes M4C/M4SC, M4D/M4SD, M4E/M4SE and M5BF. Read typical performance with its stated speed, pressure differential and viscosity.
PDF and printed page numbers may differ.
Confirm the applicable revision, dimensions and operating limits for your complete model.
Request a drawing or current revision ›PROCUREMENT SUPPORT
Prepare your inquiry
- Load torque, speed range and duty cycle
- Supply flow, pressure and return-line conditions
- Installation drawing and hydraulic schematic
- Fluid designation and operating temperature
Include quantity, destination, requested delivery date and required documents. For a replacement, add nameplate and installation photos.
Inquire about this series ›
