PRODUCT OVERVIEW
Series information
Yuken PV2R-equivalent double vane pump: high pressure, low noise.
TECHNICAL SELECTION
Specifications & configuration
| Parameter | What it tells you |
|---|---|
| Displacement | The volume displaced per shaft revolution. Use the actual displacement value and unit, not just the model's displacement code. |
| Pressure rating | The applicable limit depends on the selected configuration and operating conditions. Continuous and intermittent ratings serve different duties. |
| Rotation | The direction must match the pump specification and the stated viewing direction. Supply the original designation when replacing a pump. |
| Shaft & mounting | The shaft transmits drive torque; the flange locates and secures the pump. Matching a family name does not establish mechanical fit. |

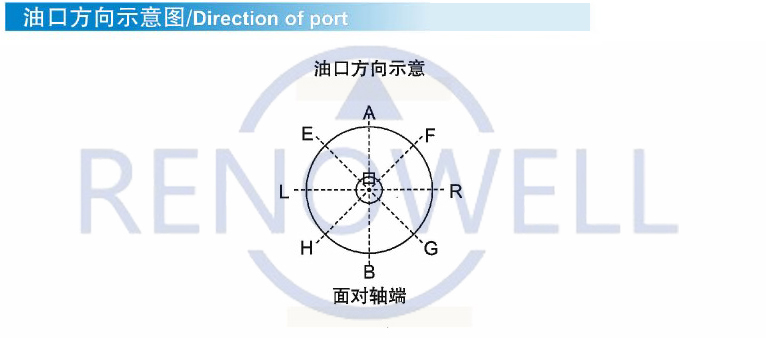

| Ports & orientation | Connection size, connection standard and housing orientation all affect installation. Outlet positions matter on multi-section assemblies. |
| Fluid & seals | The selected fluid, viscosity, temperature and seal material must suit the pump configuration. |
ENGINEERING DOCUMENTATION
Technical documents

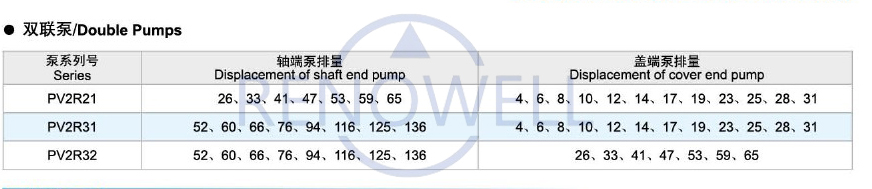

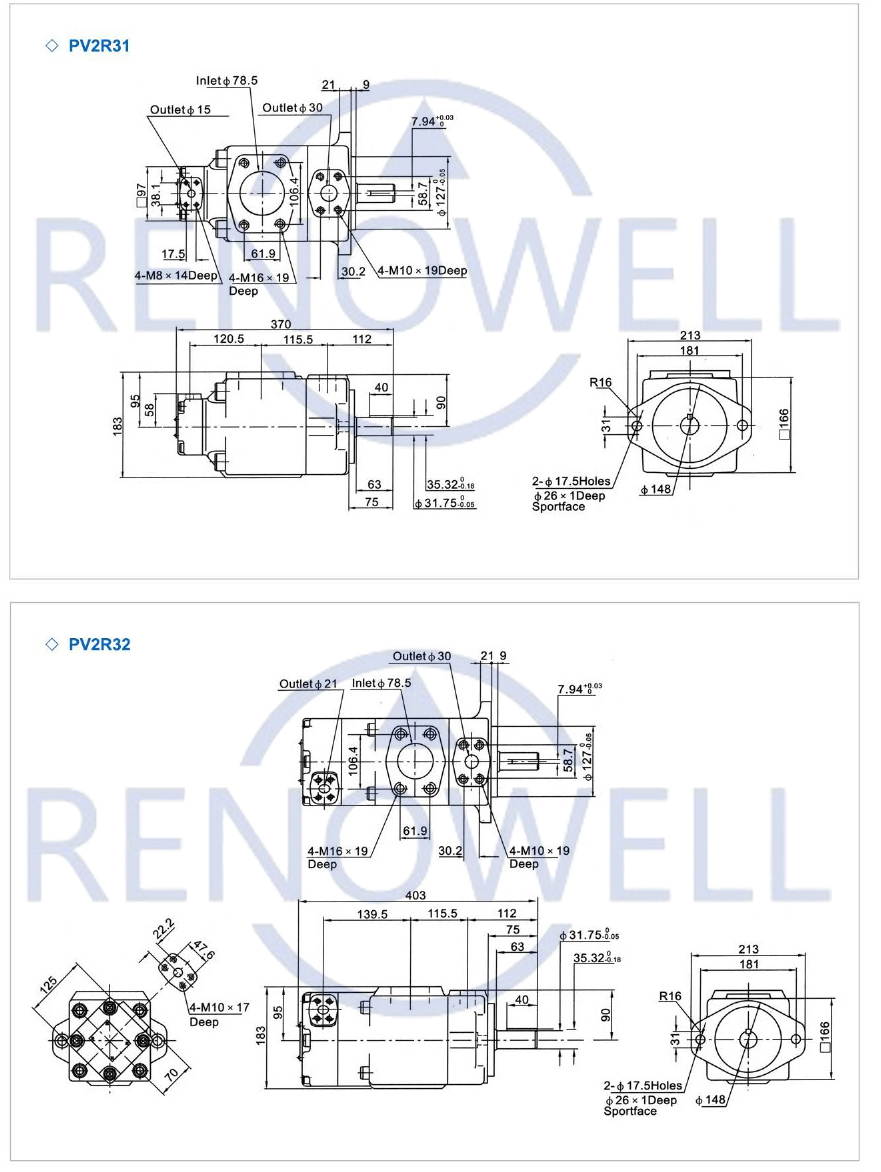

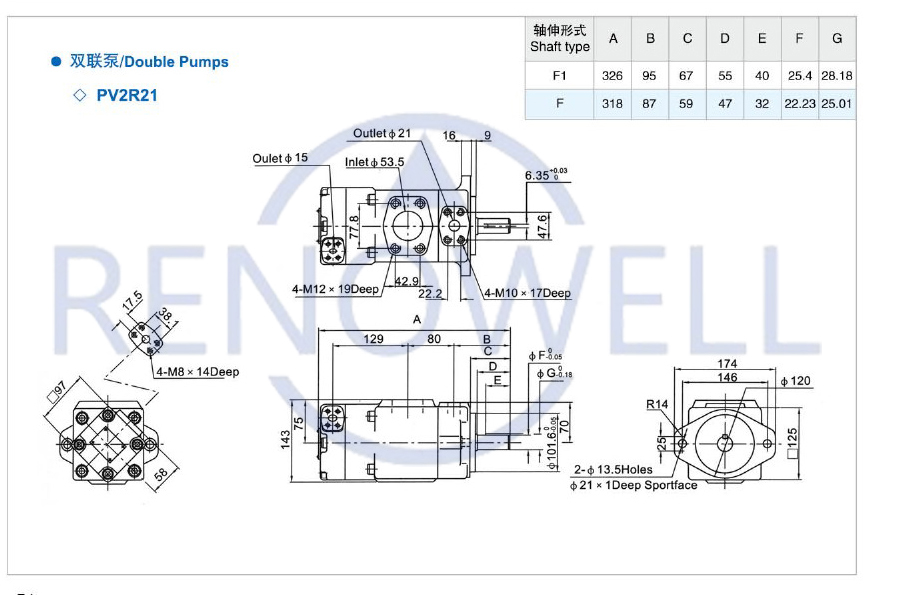

PV2R double-pump sections provide combinations and installation drawings; request performance data for the complete configuration.
PDF and printed page numbers may differ.
Confirm the applicable revision, dimensions and operating limits for your complete model.
Request a drawing or current revision ›PROCUREMENT SUPPORT
Prepare your inquiry

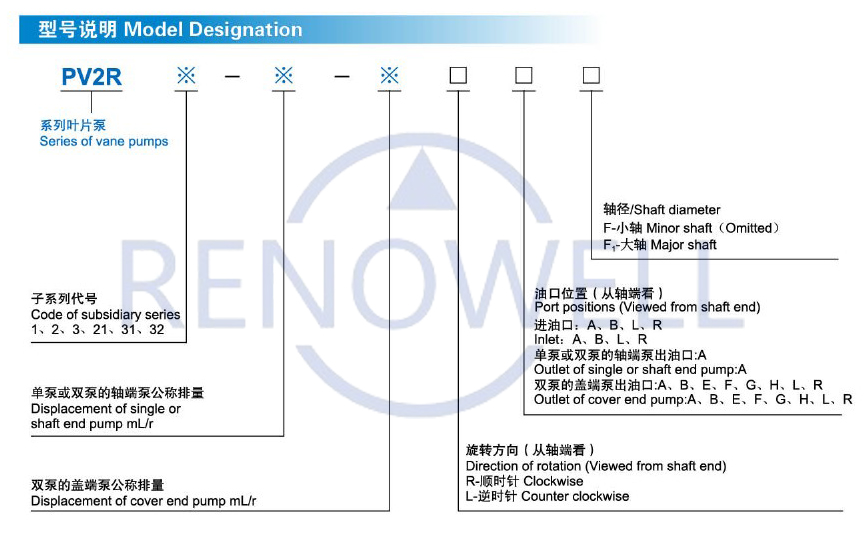

- Complete model code and configuration
- Required flow, pressure and shaft speed
- Shaft, mounting, ports, fluid and operating temperature
Include quantity, destination, requested delivery date and required documents. For a replacement, add nameplate and installation photos.
Inquire about this series ›
