PRODUCT OVERVIEW
Series information
Yuken PV2R-equivalent single vane pump.
TECHNICAL SELECTION
Specifications & configuration
| Parameter | What it tells you |
|---|---|
| Displacement | The volume displaced per shaft revolution. Use the actual displacement value and unit, not just the model's displacement code. |
| Pressure rating | The applicable limit depends on the selected configuration and operating conditions. Continuous and intermittent ratings serve different duties. |
| Rotation | The direction must match the pump specification and the stated viewing direction. Supply the original designation when replacing a pump. |
| Shaft & mounting | The shaft transmits drive torque; the flange locates and secures the pump. Matching a family name does not establish mechanical fit. |
| Ports & orientation | Connection size, connection standard and housing orientation all affect installation. Outlet positions matter on multi-section assemblies. |
| Fluid & seals | The selected fluid, viscosity, temperature and seal material must suit the pump configuration. |
QUICK TECHNICAL REFERENCE

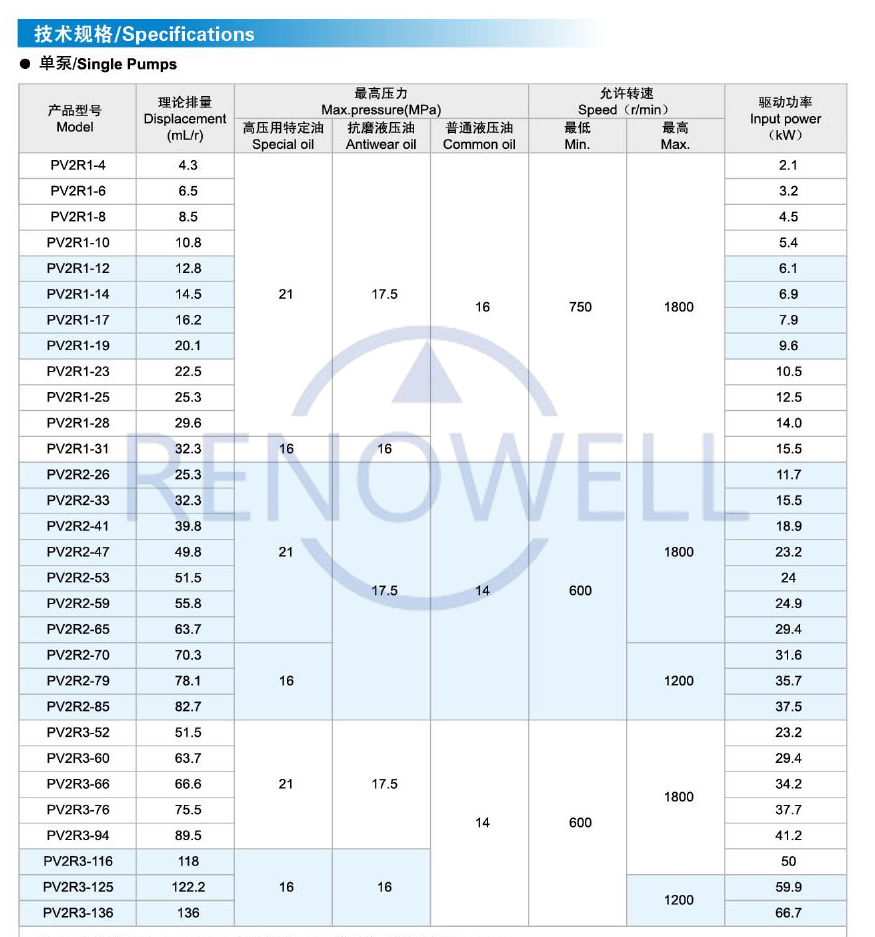

Find the displacement behind the code
Match the series first, then look up its capacity code. These displacement values come from Renowell catalogs; they are not measured flow rates or complete ordering codes.
| Code in catalog | Catalog displacement cm³/rev |
|---|---|
4 | 4.3 |
6 | 6.5 |
8 | 8.5 |
10 | 10.8 |
12 | 12.8 |
14 | 14.5 |
17 | 16.2 |
19 | 20.1 |
23 | 22.5 |
25 | 25.3 |
28 | 29.6 |
31 | 32.3 |
Source: Renowell general product catalog, printed page 72 / PDF page 39. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
26 | 25.3 |
33 | 32.3 |
41 | 39.8 |
47 | 49.8 |
53 | 51.5 |
59 | 55.8 |
65 | 63.7 |
75 | 74.6 |
Source: Renowell general product catalog, printed page 72 / PDF page 39. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
52 | 51.5 |
60 | 63.7 |
66 | 66.6 |
76 | 75.5 |
94 | 89.5 |
116 | 118.0 |
125 | 122.2 |
136 | 136.0 |
Source: Renowell general product catalog, printed page 72 / PDF page 39. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗READ THE ORIGINAL CATALOG
Model code and installation
Select PV2R1, PV2R2 or PV2R3 first, then read the displacement and interfaces for that subseries.

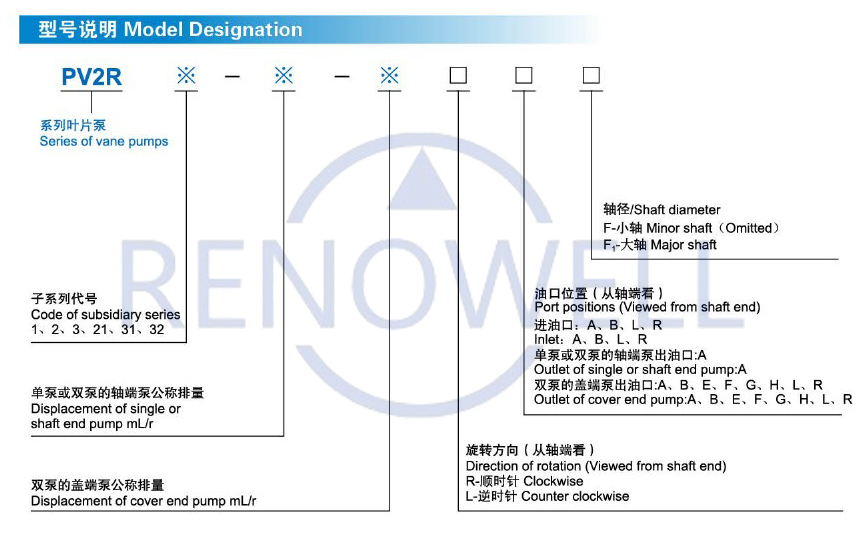

Read the complete model code
PV2R · subseries · shaft-end capacity · rotation · port positions · shaft sizeThe separators show the fields in the source table. Confirm the final ordering code with Renowell.
- Subseries
- Keep the complete PV2R1, PV2R2 or PV2R3 designation.
- Capacity
- Read the actual displacement in the technical table; the capacity number is a code.
- Rotation
- The catalog identifies R and L from the shaft end.

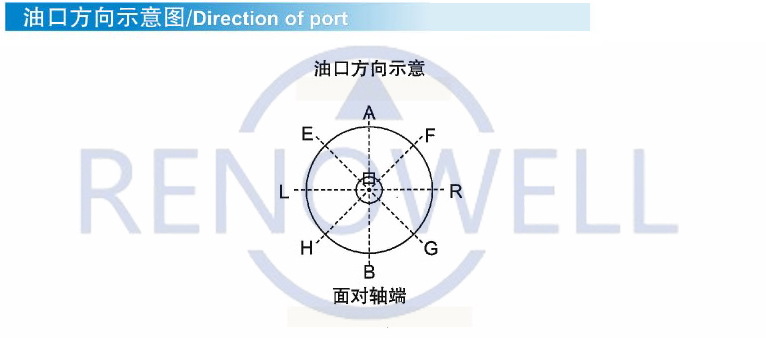

- Port positions
- Record inlet and outlet positions from the stated viewing end.
- Shaft size
- Retain the shaft-size designation and compare the installation drawing.
Include every suffix when requesting a quote.

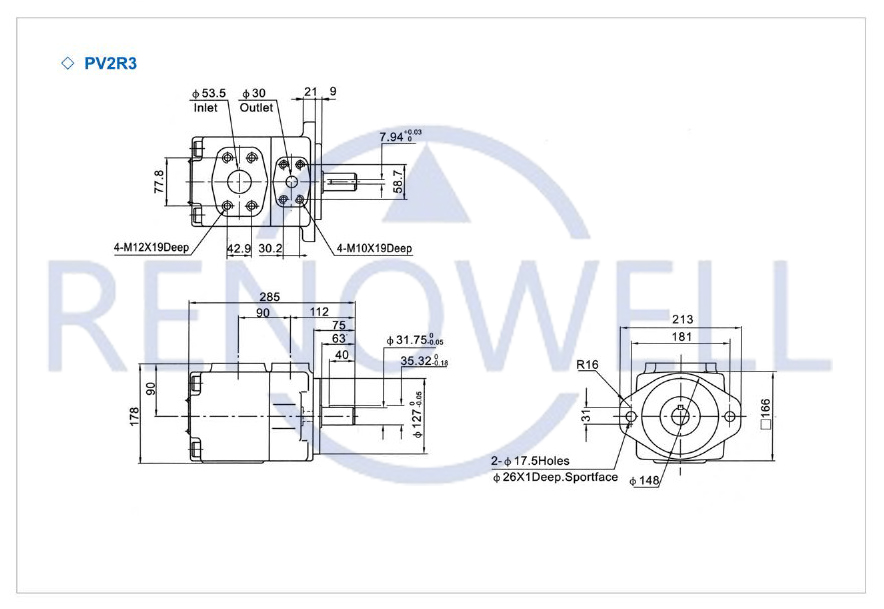

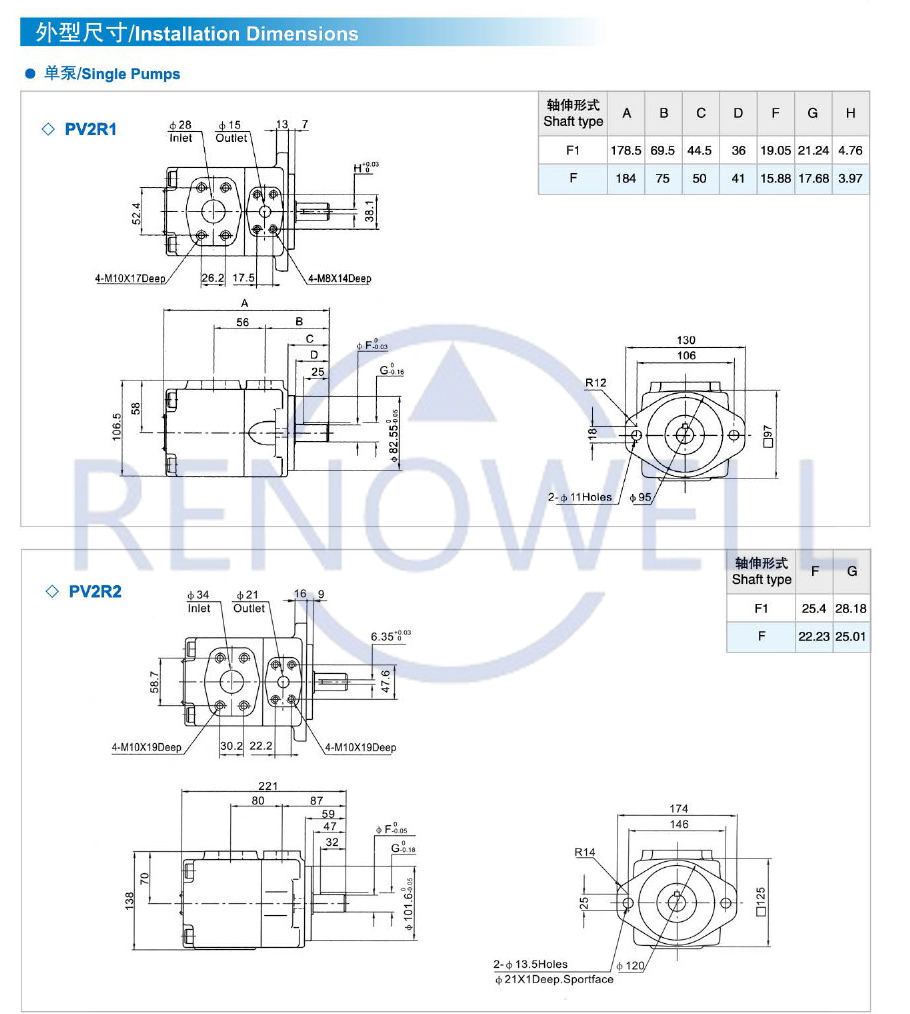

Compare interfaces before ordering
- Series drawing
- PV2R1, PV2R2 and PV2R3 have separate installation dimensions.
- Port orientation
- Label the viewing end on installation photos.
- Fluid and speed
- Read the exceptions beneath the technical table with the selected capacity and fluid.
- Combination
- Use a double-pump drawing for PV2R21, PV2R31 or PV2R32, rather than a single-pump envelope.
Use stated dimensions, not measurements taken from an image on screen. Request the current drawing or CAD file for your exact configuration.
