PRODUCT OVERVIEW
Series information

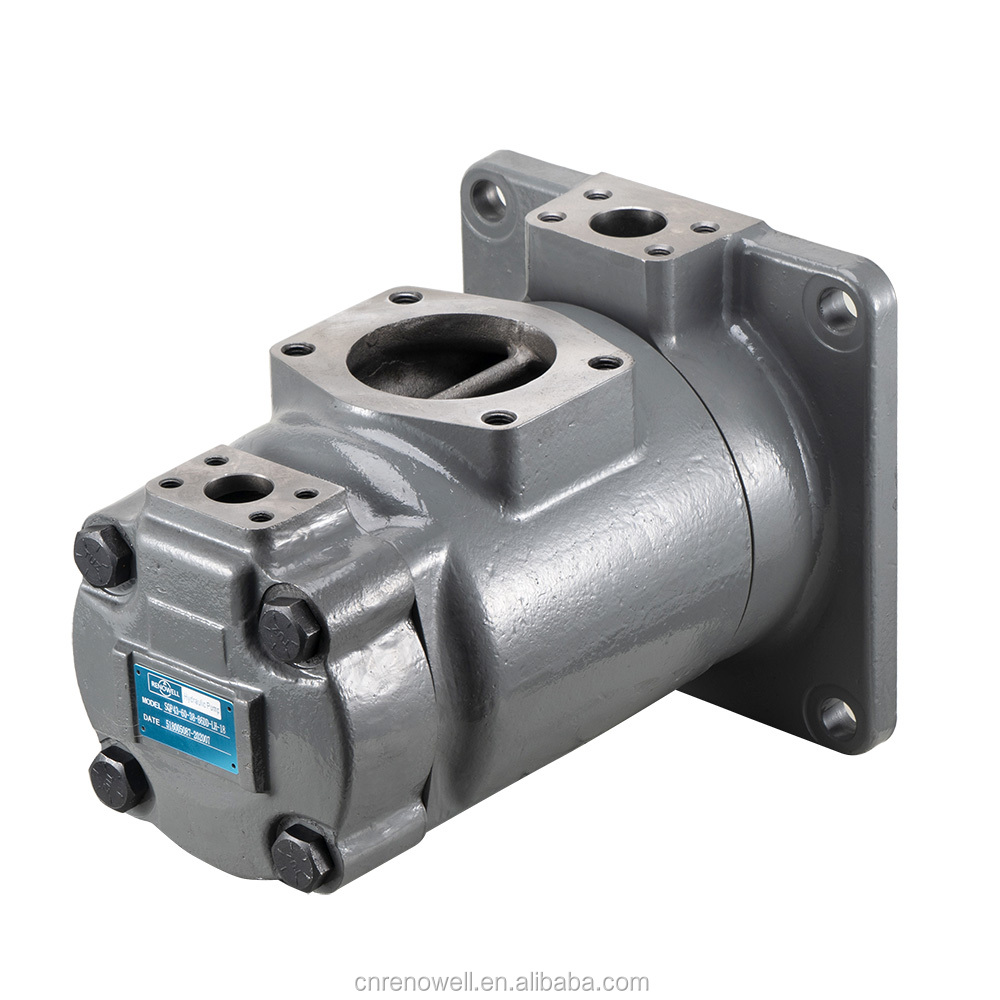

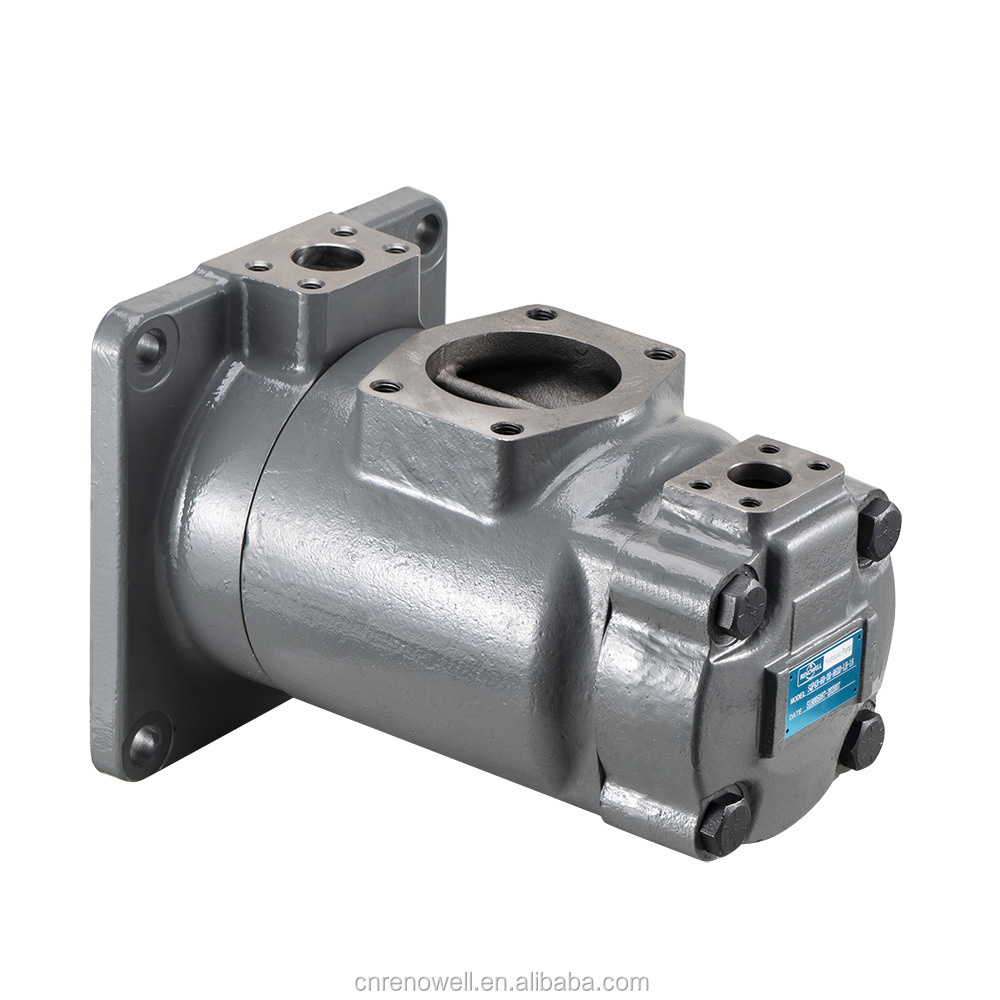

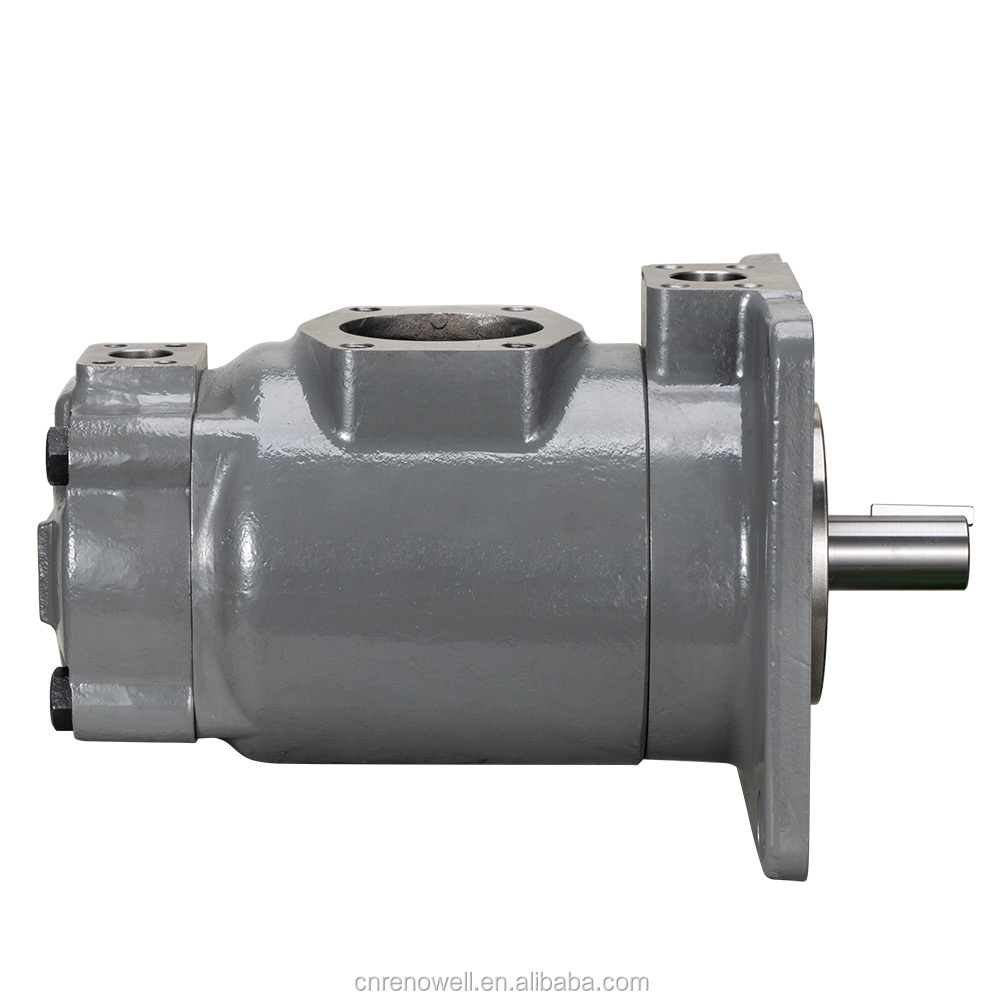

Double-section pumps in the SQP range. Specify the front and rear section requirements together with the drive and installation details.
TECHNICAL SELECTION
Specifications & configuration
Record the requirements of both hydraulic circuits. Confirm the complete assembly drawing and the applicable performance data for each selected section.
| Parameter | What it tells you |
|---|---|
| Displacement | The volume displaced per shaft revolution. Use the actual displacement value and unit, not just the model's displacement code. |
| Pressure rating | The applicable limit depends on the selected configuration and operating conditions. Continuous and intermittent ratings serve different duties. |
| Rotation | The direction must match the pump specification and the stated viewing direction. Supply the original designation when replacing a pump. |
| Shaft & mounting | The shaft transmits drive torque; the flange locates and secures the pump. Matching a family name does not establish mechanical fit. |
| Ports & orientation | Connection size, connection standard and housing orientation all affect installation. Outlet positions matter on multi-section assemblies. |
| Fluid & seals | The selected fluid, viscosity, temperature and seal material must suit the pump configuration. |
ENGINEERING DOCUMENTATION
Technical documents
PDF
Renowell general product catalogChinese · 44 pages · Revision: not stated in source
↗- SQP double pumps ↗PDF pages 36–38 · printed pages 65–70
PDF and printed page numbers may differ.
Confirm the applicable revision, dimensions and operating limits for your complete model.
Request a drawing or current revision ›PROCUREMENT SUPPORT
Prepare your inquiry

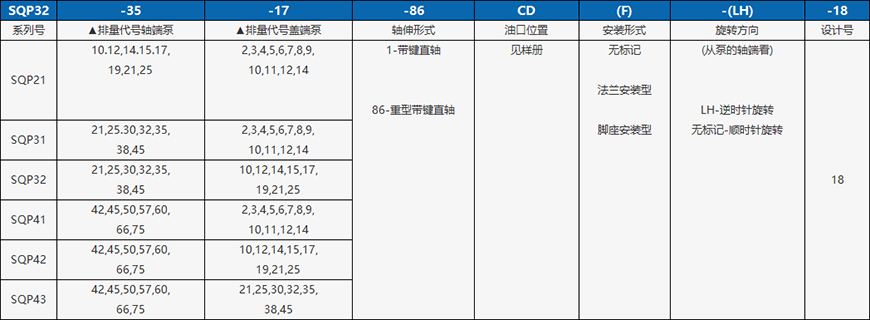

- Full SQP assembly code
- Front and rear section duty
- Mounting and shaft details
- Port arrangement and fluid specification
Include quantity, destination, requested delivery date and required documents. For a replacement, add nameplate and installation photos.
Inquire about this series ›
