PRODUCT OVERVIEW
Series information

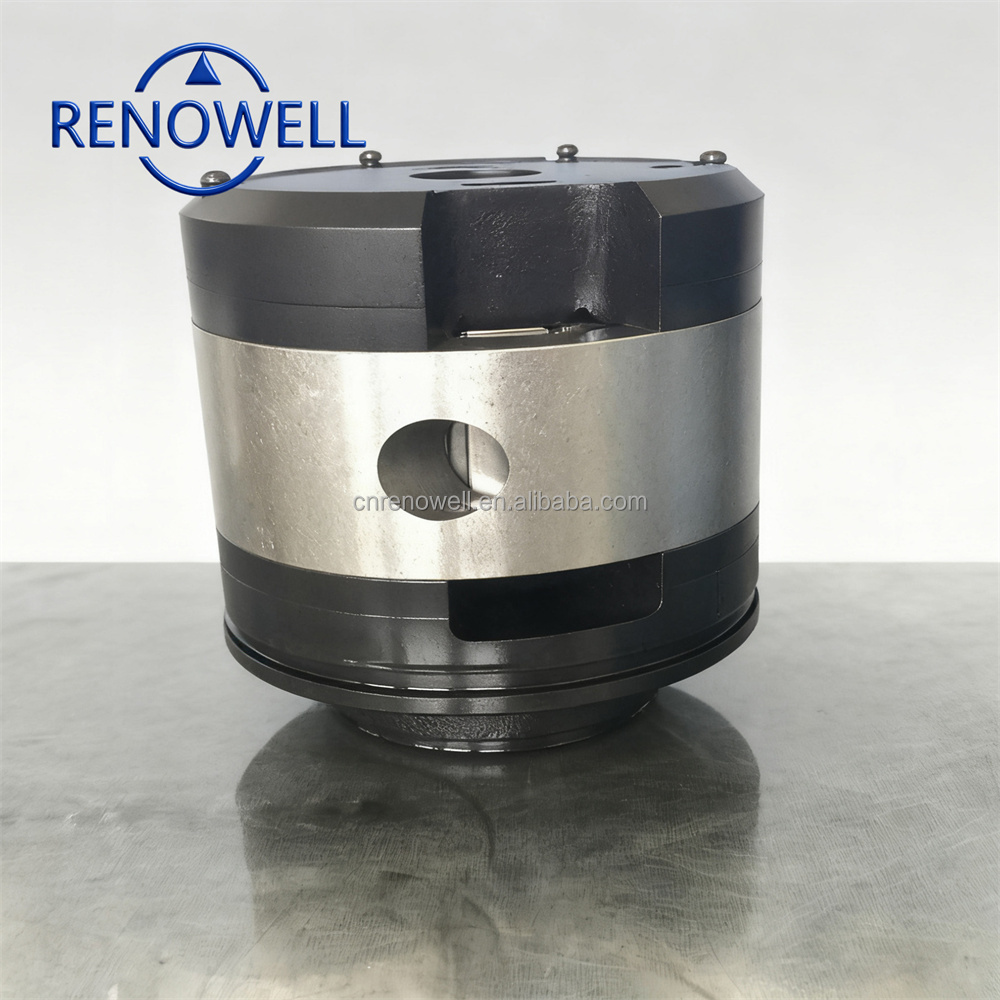

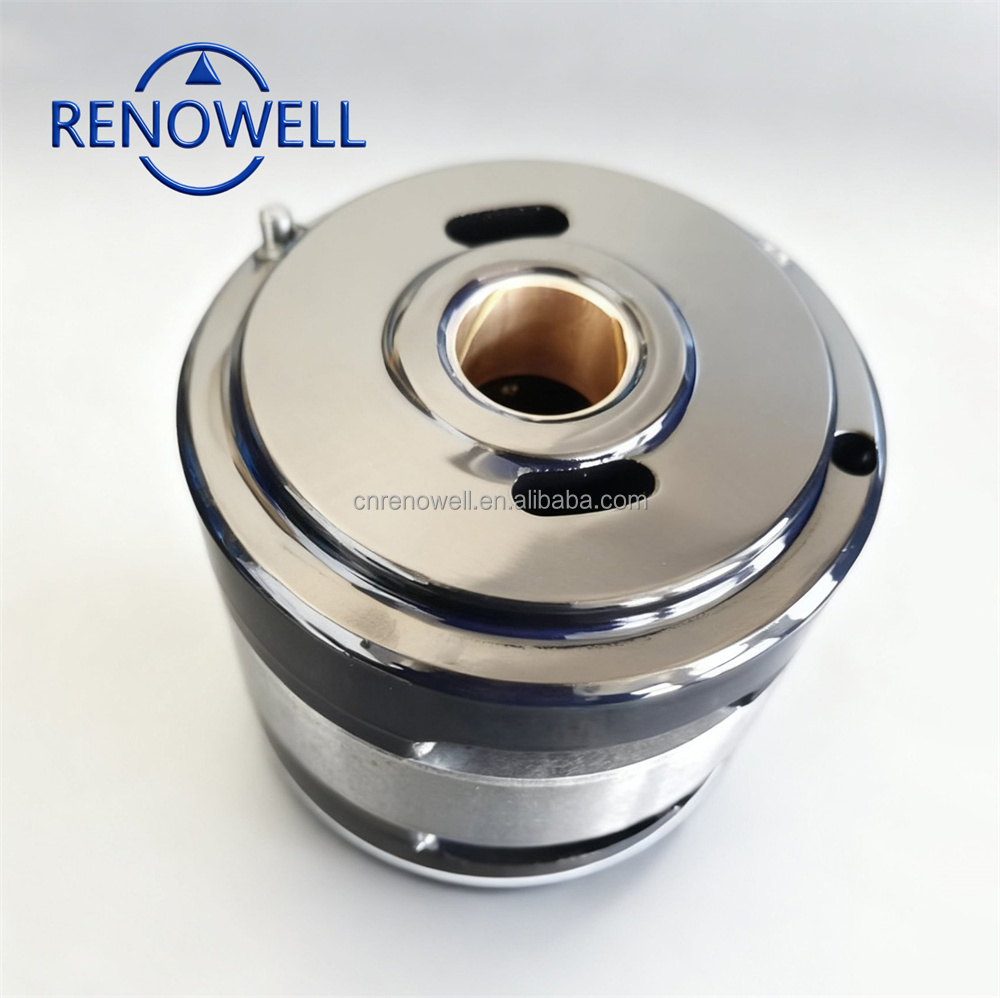

Internal cartridge assemblies for the relevant T6 / T7 pump configuration. Identify the parent pump and cartridge position before requesting a replacement kit.
TECHNICAL SELECTION
Specifications & configuration
A cartridge is a service component, not a complete pump. Match the section, displacement code and rotation, and inspect the rest of the pump before deciding what to replace.
Identify the parent pump and the section being serviced before comparing cartridge references.
| Parameter | What it tells you |
|---|---|
| Parent pump | A family name alone does not identify the required kit. |
| Pumping section | Identify the section in a double or triple pump. |

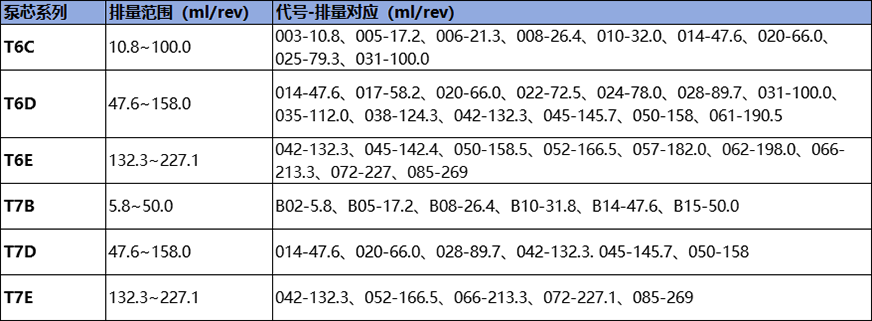

| Kit configuration | Confirm the cartridge code, rotation and included parts. |
| Service history | Describe why the kit is being replaced for technical review. |
ENGINEERING DOCUMENTATION
Technical documents
- T6 / T7 cartridge kits ↗PDF pages 16–17 · printed pages 25–27
PDF and printed page numbers may differ.
Confirm the applicable revision, dimensions and operating limits for your complete model.
Request a drawing or current revision ›PROCUREMENT SUPPORT
Prepare your inquiry
- Full parent-pump model and serial/nameplate photo
- Front, middle or rear cartridge position
- Existing cartridge code and rotation
- Photos of removed components and observed damage
Include quantity, destination, requested delivery date and required documents. For a replacement, add nameplate and installation photos.
Inquire about this series ›
