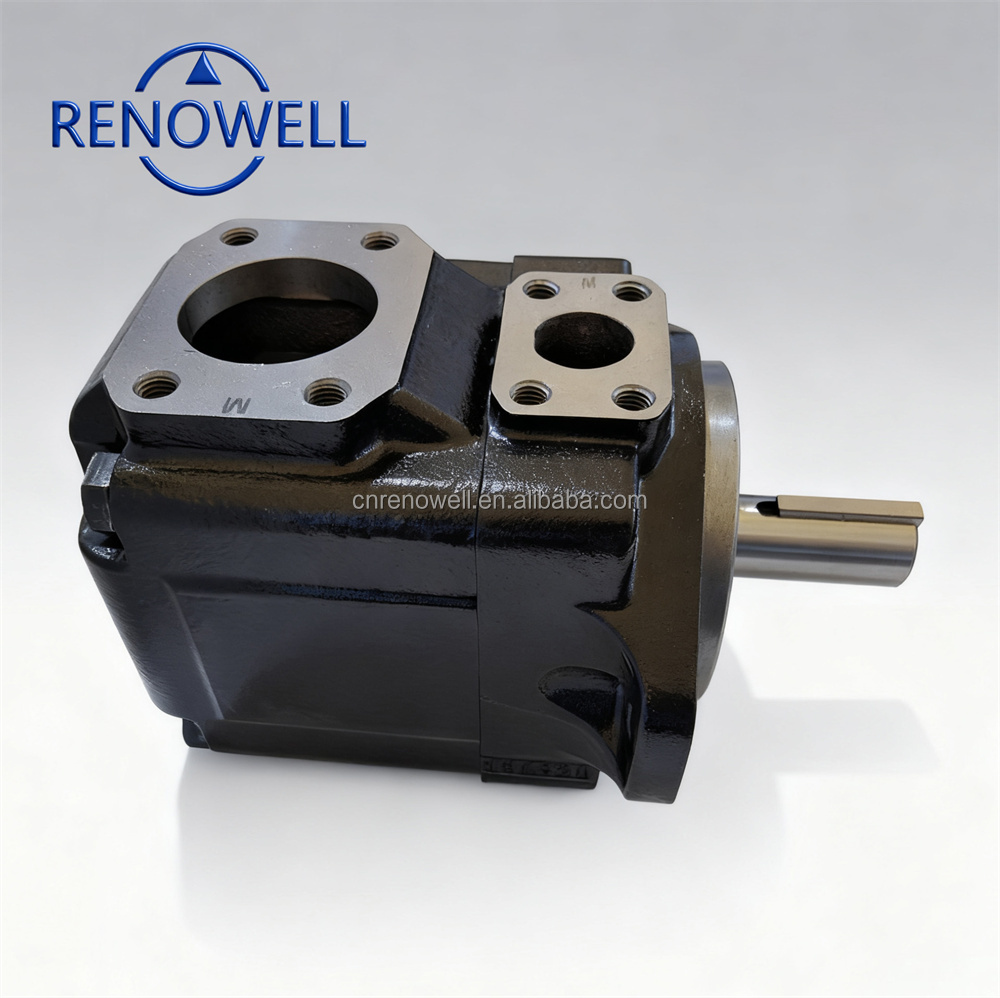

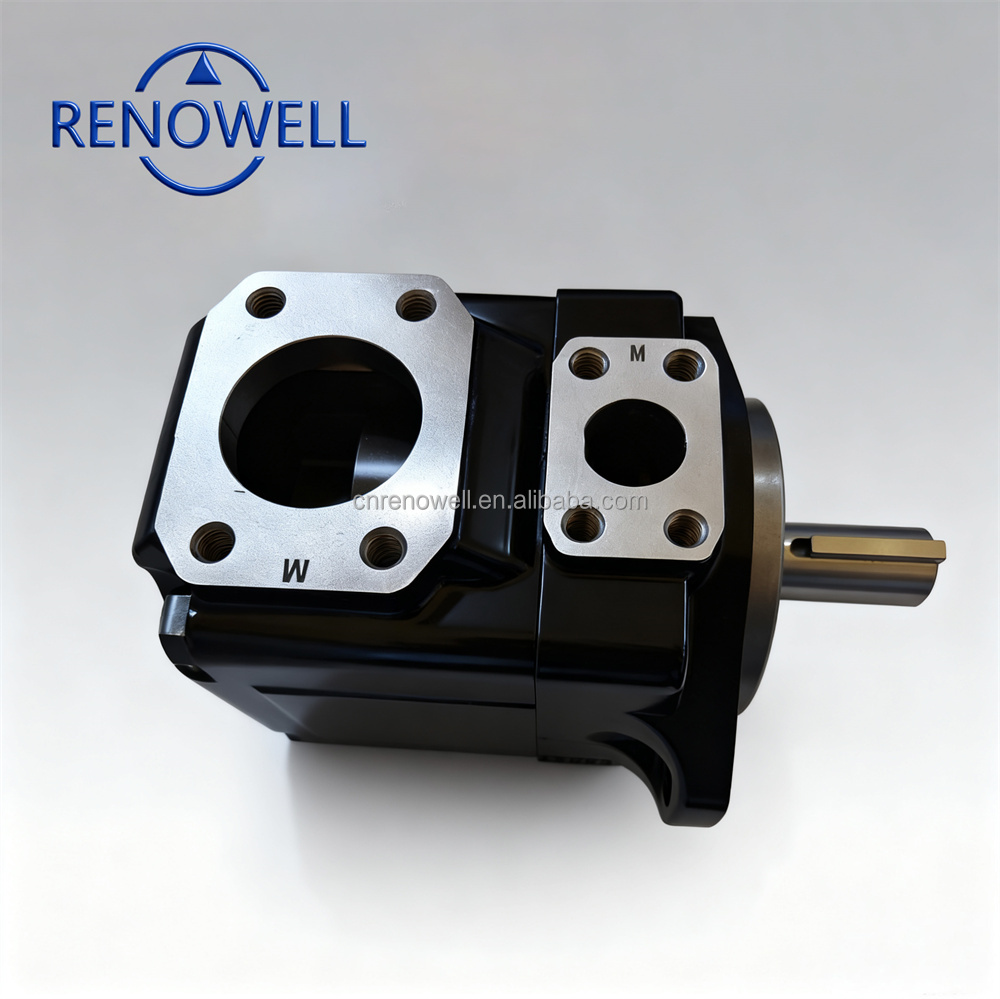

PRODUCT OVERVIEW
Series information
One pump section for a specified hydraulic circuit. Start with the series and full model code, then confirm the displacement, shaft, mounting, ports and rotation for the installation.
TECHNICAL SELECTION
Specifications & configuration
A single-section selection needs one required flow and pressure duty. Keep the pump-shaft speed separate from motor or engine nameplate speed.
| Parameter | What it tells you |
|---|---|
| Displacement | The volume displaced per shaft revolution. Use the actual displacement value and unit, not just the model's displacement code. |
| Pressure rating | The applicable limit depends on the selected configuration and operating conditions. Continuous and intermittent ratings serve different duties. |
| Rotation | The direction must match the pump specification and the stated viewing direction. Supply the original designation when replacing a pump. |
| Shaft & mounting | The shaft transmits drive torque; the flange locates and secures the pump. Matching a family name does not establish mechanical fit. |
| Ports & orientation | Connection size, connection standard and housing orientation all affect installation. Outlet positions matter on multi-section assemblies. |
| Fluid & seals | The selected fluid, viscosity, temperature and seal material must suit the pump configuration. |
QUICK TECHNICAL REFERENCE
Find the displacement behind the code
Match the series first, then look up its capacity code. These displacement values come from Renowell catalogs; they are not measured flow rates or complete ordering codes.
| Code in catalog | Catalog displacement cm³/rev |
|---|---|
B02 | 5.8 |
B03 | 9.8 |
B04 | 12.8 |
B05 | 15.9 |
B06 | 19.8 |
B07 | 22.5 |
B08 | 24.9 |
B10 | 31.8 |
B12 | 41.0 |
B15 | 50.0 |
Source: Renowell T6 / T7 single-pump catalog, printed page 02 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
003/B03 | 10.8 |
005/B05 | 17.2 |
006/B06 | 21.3 |
008/B08 | 26.4 |
010/B10 | 34.1 |
012/B12 | 37.1 |
014/B14 | 46.0 |
017/B17 | 58.3 |
020/B20 | 63.8 |
022/B22 | 70.3 |
025/B25 | 79.3 |
028/B28 | 88.8 |
031/B31 | 100.0 |
Source: Renowell T6 / T7 single-pump catalog, printed page 02 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
014/B14 | 47.6 |
017/B17 | 58.2 |
020/B20 | 66.0 |
024/B24 | 79.5 |
028/B28 | 89.7 |
031/B31 | 98.3 |
035/B35 | 111.0 |
038/B38 | 120.3 |
042/B42 | 136.0 |
045/B45 | 145.7 |
050/B50 | 158.0 |
061 | 190.5 |
Source: Renowell T6 / T7 single-pump catalog, printed page 02 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
B14 | 44.0 |
B17 | 55.0 |
B20 | 66.0 |
B22 | 70.3 |
B24 | 81.1 |
B28 | 90.0 |
B31 | 99.2 |
B35 | 113.4 |
B38 | 120.6 |
B42 | 137.5 |
045/B45 | 145.7 |
050/B50 | 158.0 |
Source: Renowell T6 / T7 single-pump catalog, printed page 02 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
042 | 132.3 |
045 | 142.4 |
050 | 158.5 |
052 | 164.8 |
057 | 179.8 |
062 | 196.7 |
066 | 213.3 |
072 | 227.1 |
085 | 269.0 |
Source: Renowell T6 / T7 single-pump catalog, printed page 02 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗READ THE ORIGINAL CATALOG
Model code and installation
Start with the full T6 / T7 code, then check the performance table and installation drawing for that configuration.
Read the complete model code

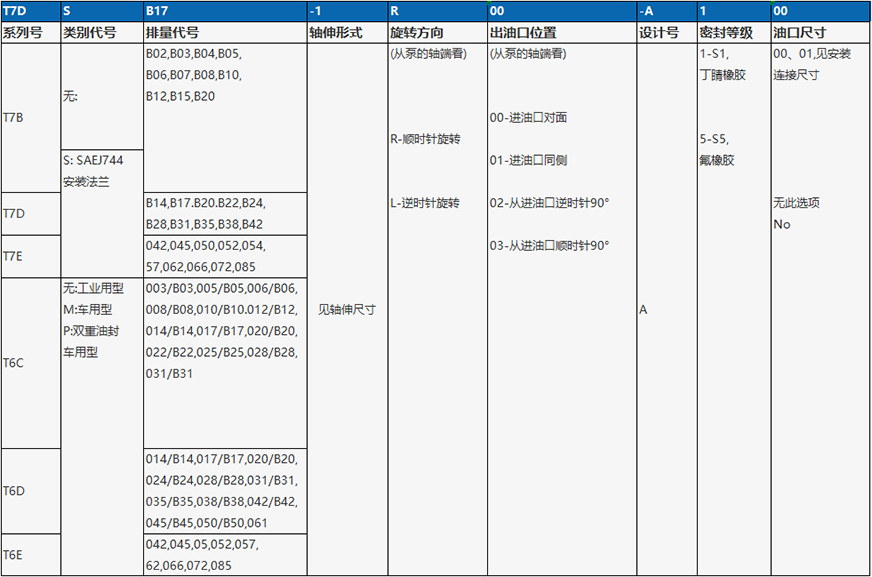

T7BS · B10 · 1 · R · 00 · A · 1 · 01The separators show the fields in the source table. Confirm the final ordering code with Renowell.
- Series
- Keep the complete family designation, including suffixes such as S.
- Displacement code
- Look up the code in the catalog; it may not equal the displacement in cm³/rev.
- Shaft
- Match the shaft designation to its dimensioned drawing.
- Rotation and outlet position
- Use the viewing direction stated in this catalog. Record both fields separately.
- Design, seals and port option
- Keep all suffixes and check fluid and connection requirements for the full model.
Include every suffix when requesting a quote.
Compare interfaces before ordering
- Mounting
- Check the pilot, bolt spacing and flange thickness for the exact series suffix.
- Shaft
- Compare diameter or spline, key, projection and coupling requirements.
- Ports
- Match the connection standard, hole pattern and outlet orientation.
- Envelope
- Allow space for the complete pump, connectors and service access.
Use stated dimensions, not measurements taken from an image on screen. Request the current drawing or CAD file for your exact configuration.
Request a configuration drawing ›Read the rating together with its conditions
For operating limits, use the Renowell catalog for your model.
ENGINEERING DOCUMENTATION
Technical documents
- T6 / T7 single pumps ↗PDF pages 4–8 · printed pages 01–10
PDF and printed page numbers may differ.
Confirm the applicable revision, dimensions and operating limits for your complete model.
Request a drawing or current revision ›PROCUREMENT SUPPORT
Prepare your inquiry
- Complete series and model suffix
- Required flow at the actual shaft speed
- Shaft, flange and port drawings
- Fluid, temperature and continuous duty
Include quantity, destination, requested delivery date and required documents. For a replacement, add nameplate and installation photos.
Inquire about this series ›
