Name: T6GC/T7GB Single Hydraulic Vane Pumps
Brand: RENOWELL

T6GC/T7GB Single Hydraulic Vane Pumps

Explore the Renowell T6GC/T7GB vane pump range and available catalog. Check the full model, drive connection, mounting and duty for the intended machine.

Manufacturer

Suzhou Renowell Hydraulic Pump Co., Ltd.

Product selection

Specified with your quotation

Price & availability

Confirmed with your quotation

Request a quote

Send the full model code, quantity and operating conditions for technical review.

Inquire about this product ›No account needed.

PRODUCT OVERVIEW

Series information

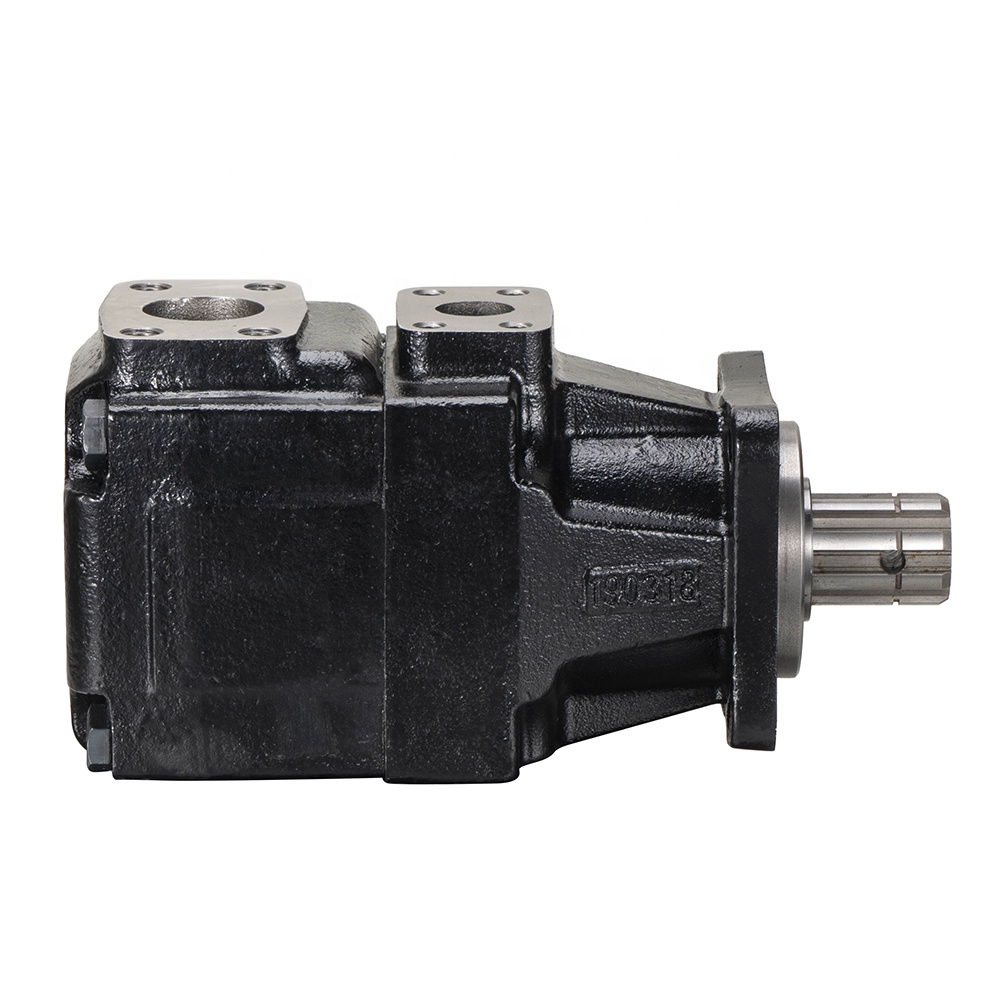

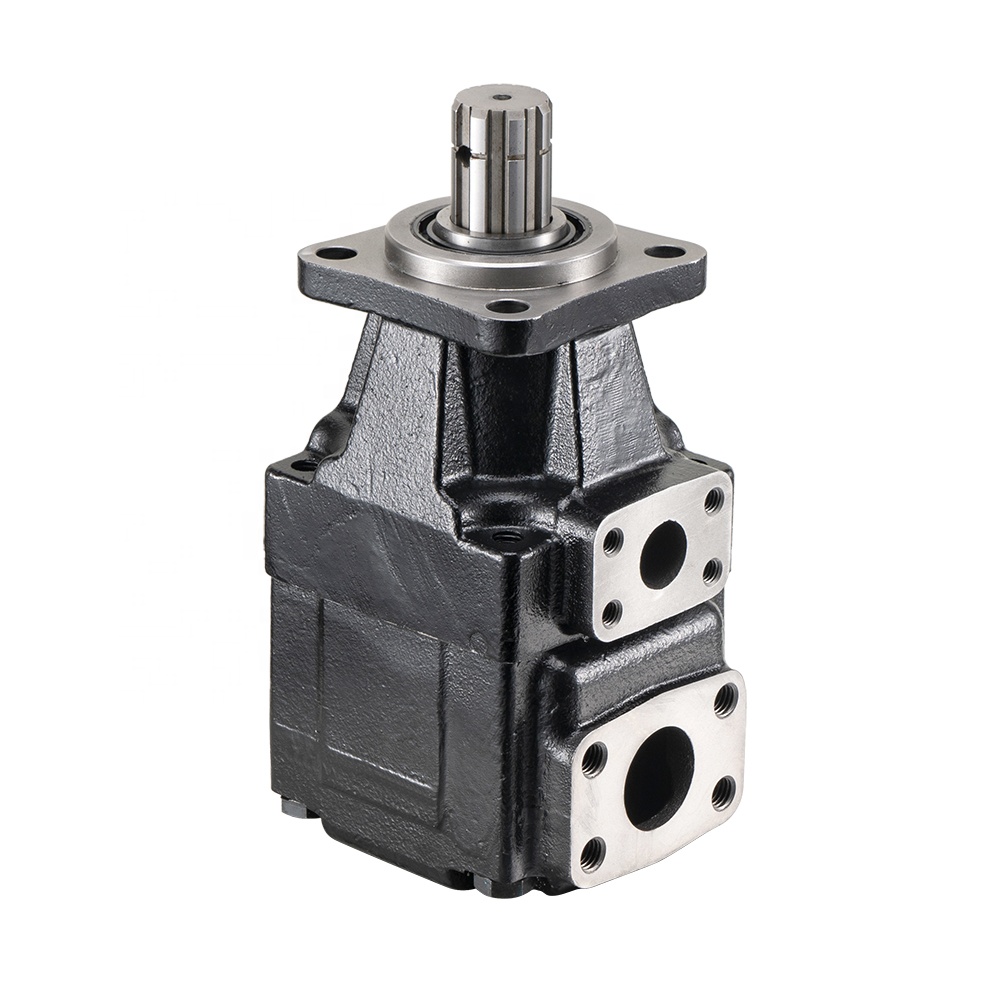

Review the T6GC / T7GB range against the machine's drive and installation requirements. The illustrated supplier example is from the T6GC family.

TECHNICAL SELECTION

Specifications & configuration

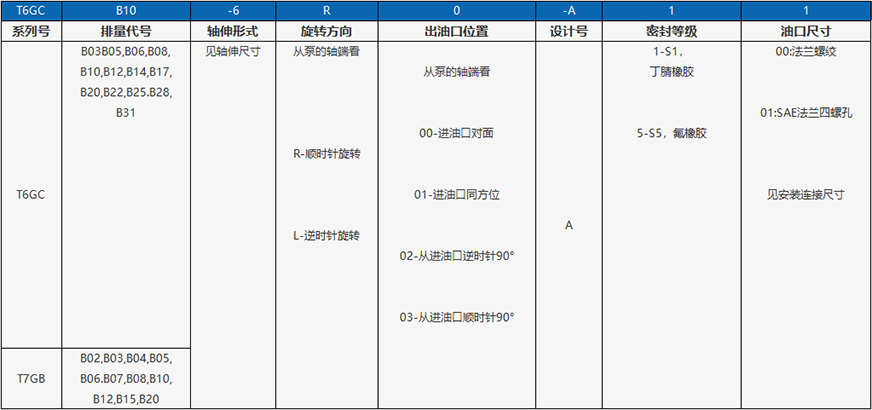

Configuration

Configurable at quote

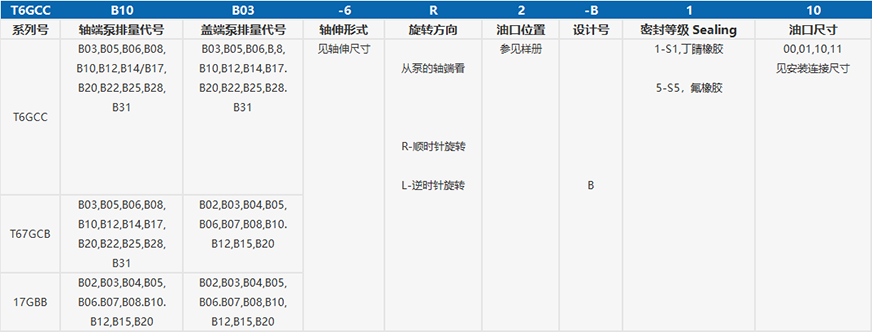

Additional family references

T6GC

For a mobile installation, identify the pump's actual drive speed and connection. Include the equipment model as supporting context and confirm fit from the pump designation and drawing.

Parameter definitions
Parameter	What it tells you
Displacement	The volume displaced per shaft revolution. Use the actual displacement value and unit, not just the model's displacement code.
Pressure rating	The applicable limit depends on the selected configuration and operating conditions. Continuous and intermittent ratings serve different duties.
Rotation	The direction must match the pump specification and the stated viewing direction. Supply the original designation when replacing a pump.
Shaft & mounting	The shaft transmits drive torque; the flange locates and secures the pump. Matching a family name does not establish mechanical fit.
Ports & orientation	Connection size, connection standard and housing orientation all affect installation. Outlet positions matter on multi-section assemblies.
Fluid & seals	The selected fluid, viscosity, temperature and seal material must suit the pump configuration.
