PRODUCT OVERVIEW
Series information

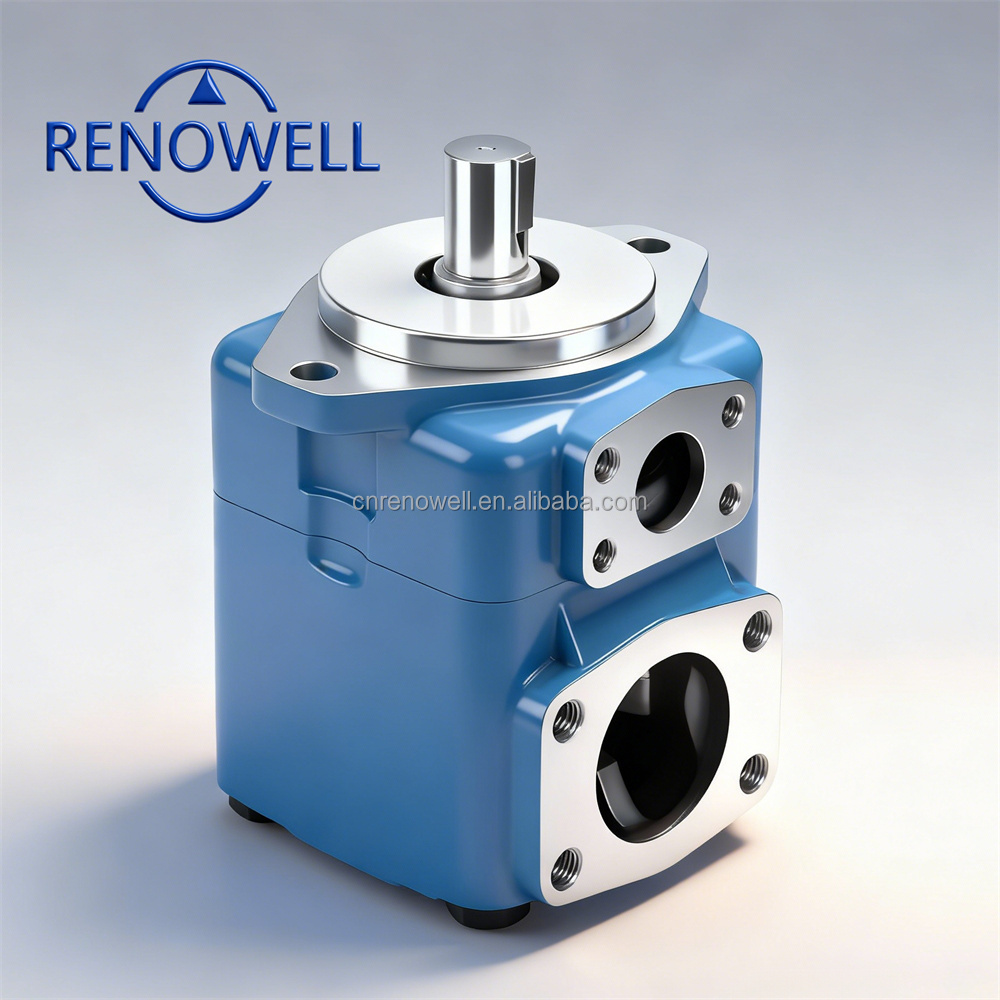

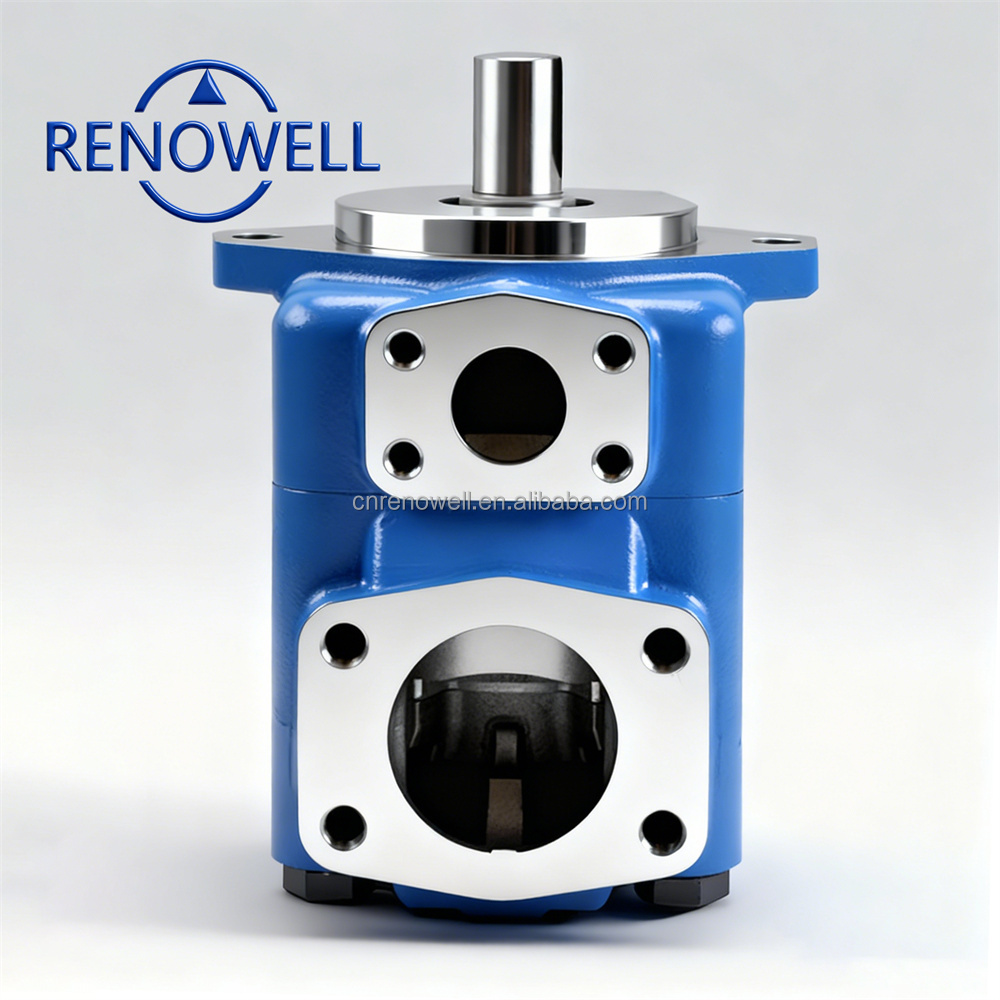

Single-section vane pumps in the V / VQ range. Use the complete designation to distinguish the required family and configuration before comparing drawings or operating data.
TECHNICAL SELECTION
Specifications & configuration
Keep the V and VQ designations and every model suffix in the enquiry. A family name alone is insufficient to confirm the mounting, displacement or operating limits.
| Parameter | What it tells you |
|---|---|
| Displacement | The volume displaced per shaft revolution. Use the actual displacement value and unit, not just the model's displacement code. |
| Pressure rating | The applicable limit depends on the selected configuration and operating conditions. Continuous and intermittent ratings serve different duties. |
| Rotation | The direction must match the pump specification and the stated viewing direction. Supply the original designation when replacing a pump. |
| Shaft & mounting | The shaft transmits drive torque; the flange locates and secures the pump. Matching a family name does not establish mechanical fit. |
| Ports & orientation | Connection size, connection standard and housing orientation all affect installation. Outlet positions matter on multi-section assemblies. |
| Fluid & seals | The selected fluid, viscosity, temperature and seal material must suit the pump configuration. |
QUICK TECHNICAL REFERENCE
Find the displacement behind the code
Match the series first, then look up its capacity code. These displacement values come from Renowell catalogs; they are not measured flow rates or complete ordering codes.
V and VQ have separate tables and source pages. Select the exact series on your nameplate.
| Code in catalog | Catalog displacement cm³/rev |
|---|---|
2 | 7.5 |
3 | 10.0 |
4 | 13.0 |
5 | 16.5 |
6 | 19.0 |
7 | 23.0 |
8 | 27.0 |
9 | 30.0 |
10 | 32.0 |
11 | 36.0 |
12 | 40.0 |
14 | 45.0 |
Source: Renowell V-series single-pump catalog, printed page 30 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
The V-series catalog defines the capacity code in US gpm at 1,200 rpm and 0.69 MPa (100 psi). The theoretical displacement column is a separate value in mL/r. See printed page 29 on the same PDF sheet.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
10 | 32.5 |
12 | 39.0 |
14 | 45.0 |
15 | 47.0 |
17 | 55.0 |
19 | 60.0 |
21 | 67.0 |
25 | 81.0 |
Source: Renowell V-series single-pump catalog, printed page 30 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
The V-series catalog defines the capacity code in US gpm at 1,200 rpm and 0.69 MPa (100 psi). The theoretical displacement column is a separate value in mL/r. See printed page 29 on the same PDF sheet.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
21 | 67.0 |
25 | 81.0 |
30 | 97.0 |
32 | 101.0 |
35 | 112.0 |
38 | 121.0 |
45 | 147.0 |
Source: Renowell V-series single-pump catalog, printed page 30 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
The V-series catalog defines the capacity code in US gpm at 1,200 rpm and 0.69 MPa (100 psi). The theoretical displacement column is a separate value in mL/r. See printed page 29 on the same PDF sheet.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
42 | 138.0 |
45 | 147.0 |
50 | 162.0 |
57 | 181.0 |
60 | 193.0 |
66 | 212.0 |
75 | 237.0 |
Source: Renowell V-series single-pump catalog, printed page 30 / PDF page 1. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
The V-series catalog defines the capacity code in US gpm at 1,200 rpm and 0.69 MPa (100 psi). The theoretical displacement column is a separate value in mL/r. See printed page 29 on the same PDF sheet.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
2 | 7.0 |
3 | 10.0 |
4 | 13.0 |
5 | 16.5 |
6 | 19.0 |
7 | 22.0 |
8 | 27.0 |
9 | 30.0 |
10 | 31.5 |
11 | 35.0 |
12 | 40.0 |
14 | 45.0 |
Source: Renowell general product catalog, printed page 40 / PDF page 23. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
10 | 32.0 |
12 | 38.0 |
14 | 43.5 |
15 | 47.0 |
17 | 54.0 |
19 | 60.0 |
21 | 67.0 |
25 | 79.2 |
Source: Renowell general product catalog, printed page 40 / PDF page 23. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
21 | 67.0 |
25 | 81.0 |
30 | 95.0 |
32 | 101.0 |
35 | 109.0 |
38 | 119.0 |
45 | 143.0 |
Source: Renowell general product catalog, printed page 40 / PDF page 23. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗| Code in catalog | Catalog displacement cm³/rev |
|---|---|
42 | 134.0 |
45 | 143.0 |
50 | 159.0 |
57 | 181.0 |
60 | 189.0 |
66 | 210.0 |
75 | 237.0 |
Source: Renowell general product catalog, printed page 40 / PDF page 23. The source unit mL/r is numerically equal to cm³/rev. Revision not stated in the source.
Check the original table ↗READ THE ORIGINAL CATALOG
Model code and installation
Keep V and VQ separate. This example is a V-series code. The general product catalog includes a dedicated VQ section; use the page links under Technical documents.

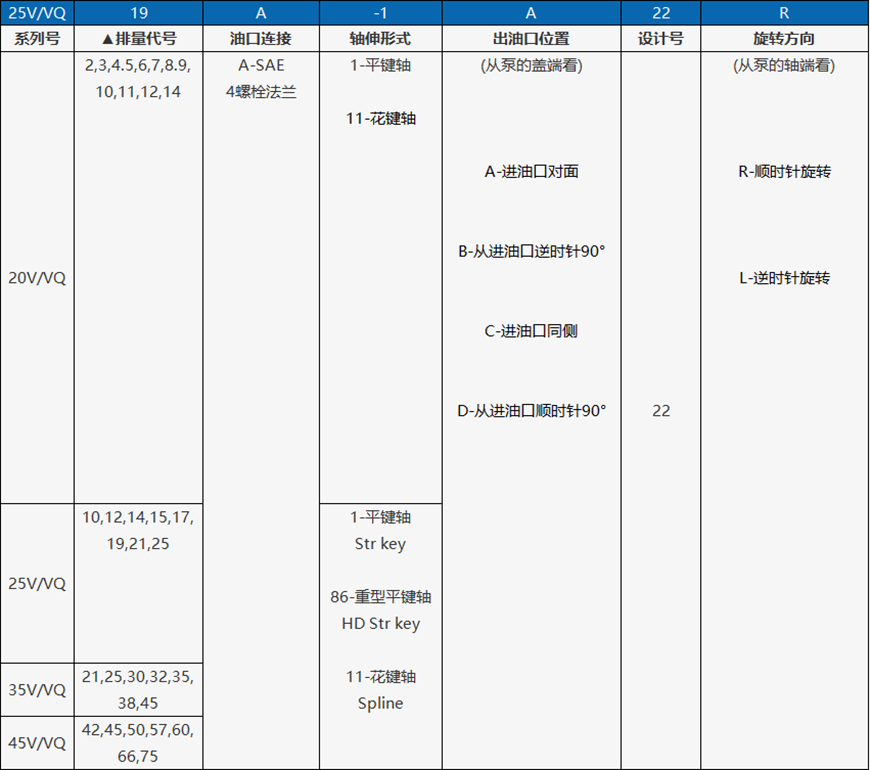

Read the complete model code
(F3-) · 25V · 19 · A · 1 · A · 22 · RThe separators show the fields in the source table. Confirm the final ordering code with Renowell.
- Prefix and series
- Keep the prefix and distinguish V from VQ.
- Capacity code
- Read the code with the catalog’s units and stated reference conditions.
- Port connection and shaft
- Record both identifiers and compare the relevant interface drawings.
- Outlet position
- The V-series example defines outlet orientation from the cover end.
- Design and rotation
- Rotation is specified from the shaft end in the V-series example. A different viewing end changes the interpretation.
Include every suffix when requesting a quote.
Compare interfaces before ordering
- Pump or cartridge
- Identify whether the inquiry concerns the complete unit or the internal cartridge.
- Viewing end
- Label photographs as shaft end or cover end before discussing outlet position.
- Mechanical connection
- Check mounting pilot, fixing pattern, shaft profile and port connections.
- Operating duty
- Include shaft speed, required flow, pressure duty and fluid details.
Use stated dimensions, not measurements taken from an image on screen. Request the current drawing or CAD file for your exact configuration.
Request a configuration drawing ›Read the rating together with its conditions
For operating limits, use the Renowell catalog for your model.
ENGINEERING DOCUMENTATION
Technical documents
- V single pumps ↗PDF pages 18–20 · printed pages 29–34
- VQ single pumps ↗PDF pages 23–26 · printed pages 39–46
This scan covers V-series single pumps. See the general product catalog for the separate VQ section.
PDF and printed page numbers may differ.
Confirm the applicable revision, dimensions and operating limits for your complete model.
Request a drawing or current revision ›PROCUREMENT SUPPORT
Prepare your inquiry
- V or VQ designation with all suffixes
- Required flow, shaft speed and pressure duty
- Shaft and mounting dimensions
- Connections, rotation and fluid specification
Include quantity, destination, requested delivery date and required documents. For a replacement, add nameplate and installation photos.
Inquire about this series ›
